Services
Services to Achieve Precision in Reality
At Raptech, we understand the demands of modern engineering solutions in manufacturing. That is why our services are designed to offer precision, flexibility, and speed — exactly when and where you need them.
Whether it is measuring micron-level accuracy through our CMM Inspection machine or offering on-demand laser cutting and fabrication services, we help you stay efficient, compliant, and competitive — without the overheads.
​​
With cutting-edge tools and a commitment to excellence, our services are designed to support OEMs and engineering partners, every step of the way.
Laser Cutting & Fabrication
Raptech already has a cutting edge infrastructure for laser cutting and fabrication of in-house projects and we can also offer Laser Cutting & Fabrication services on an hourly rental basis for businesses that need short term production capability or are looking for quick prototyping.
​
Our laser cutting and fabrication services gives you the flexibility to scale operations without intense capital investment.
What’s Included
-
State-of-the-art laser cutting machines from established brands such as BLM, Trumpf, JQ-Laser
-
Skilled technical operators (on request)
-
Access to fabrication infrastructure for customized jobs
Machinery
BLM LC5 LASER CUTTING MACHINE
Flexibility to cut sheet and tube sections
JQLASER CUTTING MACHINE
Precise angle cutting up to ±45°
Specifications
Tube Working Range
-
Round Tube : min. ø12 mm - max. ø120 mm
-
Square Tubes : min. 12x12 mm - max. 100x100 mm
-
Rectangular, Flat, Oval Tubes : min. 10x12 mm - max. 120x70 mm
-
Loadable Bar Length : min. 3200 mm - max. 6500 mm
-
Bundle Loading System Capacity : max. 4000 Kg
-
Unloading Length : max. 4500 mm
Sheet Working Range
-
CP 3015 : 3000 x 1500mm
-
CP 4020 : 4000 x 2000 mm
-
Z Axis : 150 mm
-
Max. Speed (Single Axis) : 140 m/min
-
Max. Speed (Combined XY Axis) : 196 m/min
-
Positioning Accuracy : 0.05mm
Our services are ideal for small batch production or urgent fabrication needs. Get the latest in technology without investing in overheads or looking for skilled manpower. Pay only for the time and realise your product coming in reality using our services.
FAQs
Q1. What type of materials can be used for laser cutting?
A1. Laser cutting works on a variety of materials including aluminum, stainless steel, brass and more, depending on the laser type used.
​
Q2. What types of machinery does Raptech provide?
A2. We offer state-of-the-art laser cutting machines such as the BLM LC5 and HAN'S bevel head, ensuring precision and reliability for various fabrication needs.
​
Q3. Do you offer operator support with the rental?
A3. Yes, skilled technicians are available upon request to assist with machine setup and operations.
​
Q4. Does Raptech support eco-friendly practices?
A4. We minimize material waste with optimized cutting paths. Our equipment is energy-efficient to reduce environmental impact.
​
Q5. What makes Raptech unique?
A5. We offer flexible hourly rentals combined with expert operator support. This means you can access premium machinery without heavy investments.
Precision Robotic Welding
Raptech has always worked towards building a strong ecosystem of tech enabled infrastructure and skilled expertise. Over years, we have become a trusted name in the domain of complex welding and now with robotic capabilities we are one of the few engineering service providers who are trusted by global OEMs for all their precise welding needs. We offer high volume, cost-effective welding solutions, that are in-line with global quality standards.
What to Expect?
-
Accurate, smooth and consistent welding parameters with minimum deviations.
-
Capability to weld versatile lengths within one setting.
-
Quick completion with minimal deviation.
-
Skilled and Knowledgeable Programmers to add value to your products .
-
Cost-Effective Solutions.
-
On-time and consistent delivery.
Machinery
FLEET OF 7 YASKAWA ROBOTIC WELDING CELLS
ARM LENGTHS RANGING FROM
1.4 METRE TO 3.2 METRE.
MODEL DETAILS
-
AR1440 YASKAWA - REACH -1.4MTR - AXES - 6/PAYLOAD = 12KG
-
AR2010 YASKAWA - REACH -2.1MTR - AXES - 6/PAYLOAD = 12KG
-
AR2010 YASKAWA - REACH -2.1MTR - AXES - 6/PAYLOAD = 12KG
-
MR3120 YASKAWA - REACH -3.2MTR - AXES - 6/PAYLOAD = 20KG
-
MR3120 YASKAWA - REACH -3.2MTR - AXES - 6/PAYLOAD = 20KG
-
AR2010 YASKAWA - REACH -2.1MTR - AXES - 6/PAYLOAD = 12KG
-
AR2010 YASKAWA - REACH -2.1MTR - AXES - 6/PAYLOAD = 12KG
Robotic Welding Process
Design Study • Creating Fixturing Solution • Robot Setup • Programming & Robot Training • Assembly​
Raptech’s robotic welding solutions maintain close tolerances while overcoming the issues and inaccuracies faced in manual welding. Our process of design and manufacturing required welding fixtures, ensures dimensional accuracy, resulting in cost and material efficiency.
​
For precise and reliable welding solutions, talk to our robotic welding experts today!
FAQs
Q1. What types of materials can you weld using robotic welding?
A1. We offer robotic welding services for wide varieties of materials including mild steel, stainless steel, aluminum and many more.
​
Q2. Is robotic welding suitable for small-batch production?
A2. Yes, our systems can be configured for both prototypes and large-scale production.
​
Q3. How do you maintain weld quality?
A3. We maintain supreme weld quality and compliance through precise fixturing, expert programming, and continuous monitoring.
​
Q4. Do you provide custom fixture design?
A4. Yes, we design custom fixtures to ensure alignment and repeatability.
​
Q5. Which industries do you serve?
A5. We serve diverse industries including automotive, heavy machinery, construction, general fabrication sectors and many more.
CMM Inspection Services
We offer both Fixed Bed CMM and Portable Arm Inspection services to meet the diverse measurement needs of modern engineering. Ideal for complex geometries and close tolerances, our CMM inspection capabilities help you maintain quality and accuracy across your production cycle.
CMM Inspection helps
-
Improve Precision
-
Ensure quality parameters are as per design norms
-
Identify Dimentional Errors
-
Save Cost of Rejection and time
-
Evaluate Defects
Machinery
CMM ABSOLUTE ARM 83
RA8325 – 6 AXIS
WITH A MEASURING ENVELOPE
2500 MM
​
MAXIMUM REACH - 2730 MM
PROBING VOLUMETRIC ACCURACY (ISO 1036) - 0.046 MM
ACCURATE 3D CMM MEGA
Why Choose Raptech CMM Services?
-
High-precision 3D measurement - Accuracy 2.2 + L / 350*
​
-
Accurate and detailed inspection reports
-
High End Machinery from Accurate India - Least count 3 microns
-
Wide Measuring range:
X-Axis:- 1200 mm (1143mm)​
Y-Axis:- 2000 mm (1943mm)​
Z-Axis:- 1000 mm (943mm)
-
High Load Carrying Capacity - Upto - 1000 Kg
-
Advanced Probe head - PH10M Motorised Indexing by RENISHAW
FAQs
Q1. What types of components can be inspected using CMM?
A1. CMMs are used to inspect machined parts, castings, molds, dies, assemblies and sheet metal with high dimensional complexity.
​
Q2. What’s the difference between Fixed Bed and Portable Arm CMM?
A2. Fixed CMMs offer superior precision for controlled environments, while Portable Arm CMMs provide flexible, on-site inspection for large or immovable components.
Q3. Are CAD models necessary for inspection?
A3. While CAD models improve accuracy and analysis, we can also work with 2D technical drawings and manually specified tolerances.
​
Q4. Is on-site inspection available?
A4. Yes. Our Portable Arm CMM can be deployed at your location for quick, reliable on-site inspections.
​
Q5. How fast can I get the inspection report?
A5. In general, standard inspections are completed within 24–48 hours, depending on complexity and quantity.
In general, standard inspections are completed within 24–48 hours, depending on complexity and quantity.
Tube Bending Services
High-Quality Bends for Automotive & Industrial Sectors

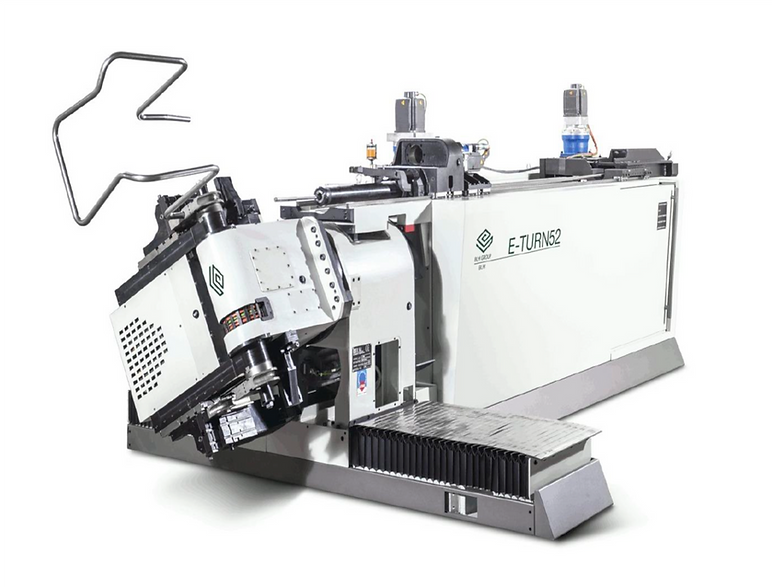

Raptech delivers custom CNC tube bending with high precision and durability. Our fully electric BLM E-TURN 52 machines enable complex 3D geometries, closed radius bends, and seamless multi-radius parts—ideal for both prototypes and full-scale production.
Capabilities:
CNC Tube Bending: Up to Ø 52 mm tube diameter, ±0.1 mm accuracy, 3D multi-radius capability
All-Electric Servo machine: Ensures precise angle accuracy (±0.05°) and twist control (±0.1°) in round tubes
Prototyping to Bulk Production: From 1-off prototypes to 10,000+ units/month with consistent quality
Material Range: Stainless steel, carbon steel, aluminum, copper, and other alloys up to 4 mm wall thickness
Industries Served:
Automotive | Agriculture | Construction | Furniture | Material Handling | Energy & HVAC
What’s Included
-
Servo-electric technology
-
High-Speed and Precision
-
Multi-Radius
-
Right/Left Bending – complex parts
-
Compatible with MS, SS, AL, Cu
-
Special alloys- multi-radius bend
Machinery
E-Turn 52
Tube - Diameter - 52 mm
​
Range - 6000 MM
Thickness - 4 MM
FAQs
Q1. What is the maximum/ minimum tube size you can bend?
A1. Raptech’s BLM E-Turn 52 CNC tube bender can handle tubes up to 52 mm OD with a minimum bend radius of 1.5D.
​
Q2. Do you offer CNC tube bending for custom projects or small batches?
A2. Yes, we cater to custom projects and small batches, offering design and prototyping support for better results.
​
Q3. Do you provide tube bending services for the automotive industry OEM’s in Pune?
A3. Yes, with nearly three decades of experience, we serve leading automotive OEMs in Pune with fast turnarounds.
​
Q4. Do you provide any value-added services?
A4. Yes, we offer end-to-end solutions including design, manufacturing, and testing, tailored to customer needs.​
Let’s Build Something Better, Together.
Our services are ideal for small batch production or urgent fabrication needs.
Get the latest in technology without investing in overheads or looking for skilled manpower. Pay only for the time and realise your product dream with Raptech.
Whether you are an OEM, project partner, or a fellow innovator, our services are designed to add value where it matters the most - your bottom line.
