Our Infrastructure
Manufacturing Units
Where cutting edge infrastructure meets highly skilled workforce to deliver engineering excellence, at par with global standards.
Raptech Engineering operates from four strategically located units in Chakan, a prominent industrial area, also known as the automotive cluster of Pune. This helps us to be in close proximity to all its major customers in the vicinity.
Our each unit is equipped with advanced machinery and skilled workforce that offer a diverse range of capabilities in precision engineering like robotic welding, laser cutting, tube bending etc.
Our commitment to excellence is reflected in every project we deliver, supported by state-of-the-art technology and a team dedicated to delivering exceptional results. With our well-equipped units, we are poised to tackle any engineering challenge that comes our way.
Machine Armory
Raptech understands the importance of a well-equipped machine infrastructure to meet diverse needs of various industries. From achieving micron-level accuracy through our Toolroom and VMC set-up to flawless Robotic applications, sheet and tube laser cutting solutions, along with advance tube bending solutions.
You can rely on Raptech to provide the cutting-edge technology which your business needs to succeed.
BLM LC5
Sheet + Tube Laser Cutting
-
IPG Laser Source – 3kW
-
Range
Round Tube min. ⌀ 12-max. 120 mm
Square Tube min.12x12 mm-max. 100x100mm
Thickness min. 0.5 mm-max.16 mm
Mild Steel
12 mm Stainless Steel
6 mm Aluminium
FEATURES
-
Dual Function: Cuts both sheet & tube.
-
High-speed fiber laser up to 140 m/min traverse speed
-
Automated loading/unloading up 3 tons of bundle
-
Smart cutting technologies-Piercing Time: <2 sec for 10 mm MS
-
High accuracy-0.05 mm
JQ Laser FLT-6035 ETN
Tube Laser Cutting
-
IPG Laser Source – 6kW
-
Range
Round Tube min. ⌀ 15 mm-max. 350 mm
Square tube min. 15x15 mm-max. 250x250 mm
-
Thickness:
20 mm Mild Steel | 10 mm Stainless Steel | 5 mm Aluminium
FEATURES
-
Bevel Cutting Head-Precise angle cutting up to ±45°
-
High-Speed Fiber Laser – Traverse speed up to 120 m/min, acceleration 1.0 g
-
Automated Loading with two loading systems – Handles tube bundles up to 3 tons
-
Smart Cutting Technologies – Piercing time <2 sec for 10 mm MS
-
High Accuracy – Positioning ±0.05 mm, repeatability ±0.03 mm
TruLaser 1030​
Sheet Laser Cutting
-
TruDisk Laser Source – 10kW
-
Range – 3000x1500 mm
-
Thickness :
30 mm Mild Steel | 40 mm Stainless Steel | 10 mm Aluminium
FEATURES
-
High-Speed Fiber Laser – Traverse speed up to 140 m/min, acceleration 1.5 g
-
Premium finish – Smooth, clean edges with BrightLine & CoolLine.
-
High Accuracy – Positioning ±0.05 mm, repeatability ±0.03 mm
-
Industry 4.0 integration for traceable and faster delivery.
YASKAWA
Robotic Welding
-
Source – Yaskawa MIG Welding
-
Range – Min. 100 mm - max. 3120 mm
​
FEATURES
-
High Precision Welding – ±0.5 mm repeatability ensures consistent weld quality.
-
Large Work Envelope – Handles parts up to 3120 mm in length.
-
Fast Production – Welding speed up to 5 m/min, reducing cycle time.
-
Flexible Operations – Capable of MIG welding Mild Steel, Stainless Steel, Aluminum up to 8 mm thickness.
TRUMPF 1225
Sheet Bending
-
Capacity – 225 Tons
-
Bending Range – Upto 4100 mm
-
Thickness:
20 mm
FEATURES
-
High-force capability – 225 tons press ensures heavy-duty bending.
-
Precision Bending – Angle accuracy within ±0.5°.
-
Long bending length – Capable of bending up to 4100 mm sheets for large components.
-
7-axis backgauge – Delivers precise positioning for complex part geometries.
-
Rapid ram speed – Y-axis fast speed up to 170 mm/s.
-
High positional precision – Axis accuracy: Y = 0.01 mm, X = 0.05 mm, R = 0.1 mm.
E-TURN52
Tube Bending
-
Tube – Diameter – 52 mm
-
Tube Range:
Round Tube min. ⌀ 8 mm - max. 52 mm
Rod - min. ⌀ 8 mm - max. 16 mm
-
Thickness:
Upto 4mm
FEATURES
-
Servo-electric technology
-
High-Speed and Precision
-
Multi-Radius
-
Right/Left Bending – complex parts 5. Compatible with MS, SS, AL, Cu
-
Special alloys – multi-radius bend
VMC
-
Table Size: 2200 x 850 mm
-
Travel Capacity:
X-axis: 2000 mm | Y- axis: 900 mm | Z-axis: 850 mm -
Maximum Table Load: 2200 kg
​
FEATURES
-
High-Speed Performance – Rapid traverse speed up to 36 m/min for faster cycle times.
-
High Accuracy – Positioning accuracy within ±0.005 mm.
-
High Repeatability – Repeatability of ±0.003 mm, ensuring consistent machining quality.
Laser Welding
Welding Services
-
Power Source - 3Kw
-
Thickness:
6mm
-
Materials:
Stainless Steel
Mild Steel
Aluminium
Brass
-
Versatile Welding Capabilities
-
Superior Accuracy & Finish
FEATURES
Superior Accuracy – Welding precision within ±0.05 mm, ensuring minimal distortion. -
Versatile Capabilities – Supports spot, seam, overlap, and edge welding applications.
-
Excellent Finish – Produces clean weld seams with little to no post-processing.
-
High Speed – Welding speed up to 5 m/min, boosting productivity.

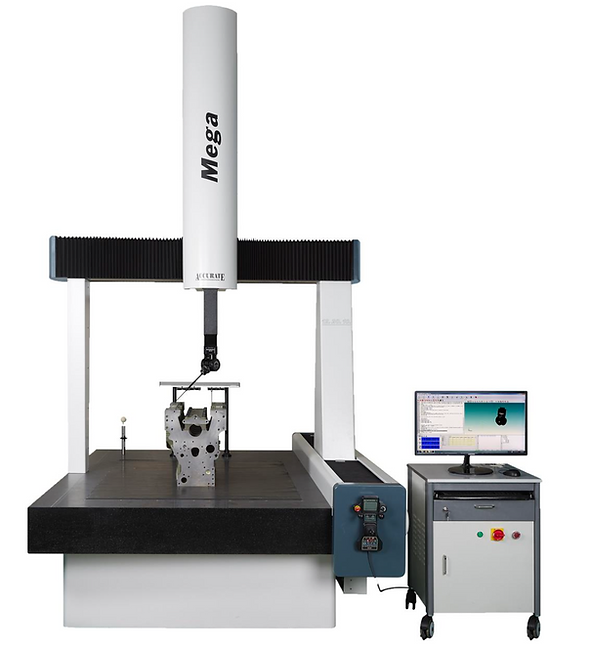

CMM
Quality Check
-
Wide Measuring range:
• X-Axis: 1200 mm
• Y-Axis: 2000 mm
• Z-Axis: 1000 mm
-
High Accuracy
2.2 + L / 350* (3 microns)
-
High Load Carrying Capacity
Upto - 1000 Kg
-
Advanced Probe Head
-
High-Speed Machine
